Mishimoto - Front Mount Intercooler WITH Intake - Black (08-14 STi)
F-MIS-MMINT-STI-08AIBK
   Quick Product Info
Brand: Mishimoto
Part #: F-MIS-MMINT-STI-08AIBK
Bumper Beam Included: Yes
Code Type: Bar and Plate
Cold Air Intake: Included
Color: Black
Core Depth: 3.5in
Core Height: 8.25in
Core Width: 28in
End Tank Material: Aluminum
Hardware Included: Yes
Piping Color: Polished
Piping Material: Aluminum
   Confirmed Applications
2008-2014 Subaru STi
1,667.97
$CAD
AVAIBILITY
Not in Stock, See Shipping Date.
SHIPPING DATE
COMPATIBILITY
NOTIFY ME!
Click here to be notified by email when this product is In Stock.
REVIEWS

Product Details

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto STI Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. The Mishimoto front-mount intercooler was designed with a large 28" intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The Mishimoto STI intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter mile.

The Mishimoto Subaru STI Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25" in diameter to keep airflow velocities high, giving your car an instant response without excessive throttle lag that plagues many front-mount intercooler designs. The cold side of the system features 3" mandrel-bent aluminum tubing for maximum airflow, and to match the diameter of your throttle body. The kit is compatible with both stock and aftermarket bypass or blow-off valves.

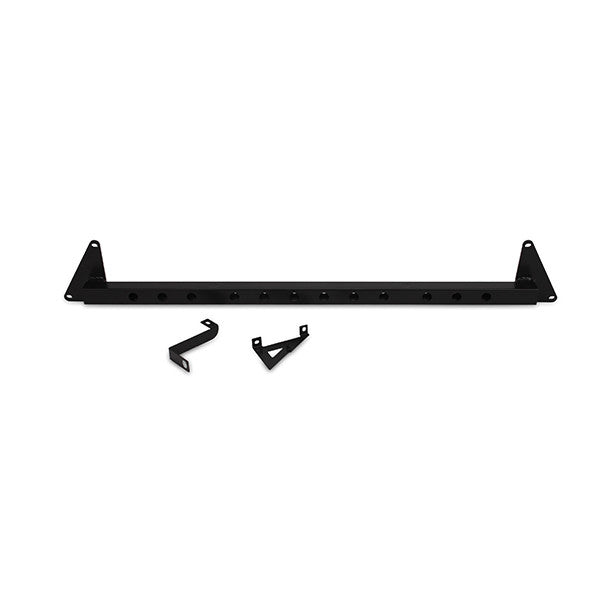

The kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets, including a relocation bracket for the coolant overflow bottle. All mounting brackets come with applicable hardware, zip ties, and thermal wrap.
